AS Fire, Smoke + Acoustic Door Seal

LP1004AS, LP1504AS, LP2004AS

  • LP1004AS

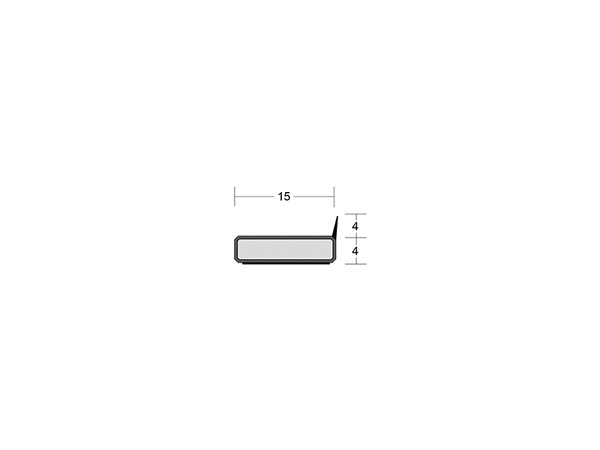

  • LP1504AS

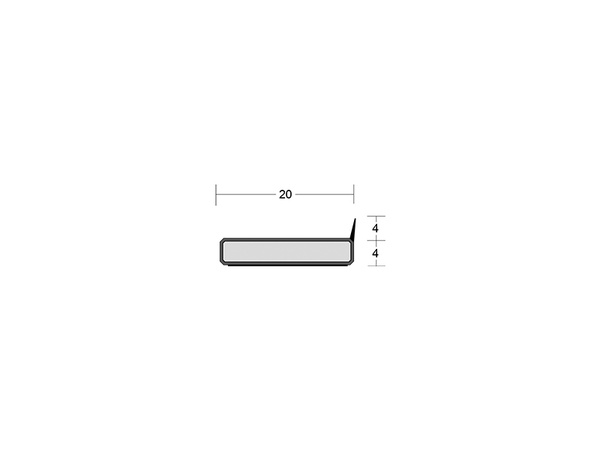

  • LP2004AS

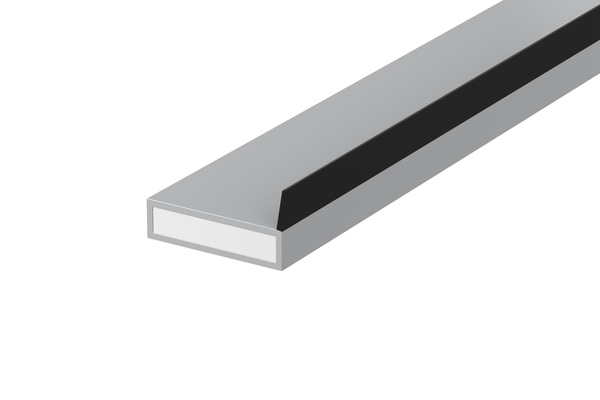

Our AS door seal with elastomeric fin offers fire, smoke + acoustic protection, with the added benefit of thermal containment. Available in a choice of sizes to cover 30 + 60 minute applications.


Note: The limitations of the printing process mean the colours and finishes shown here may not be exactly the same as the seals supplied. Request free samples to assist in colour matching.

  • Request sample
Colour

System specification

Property

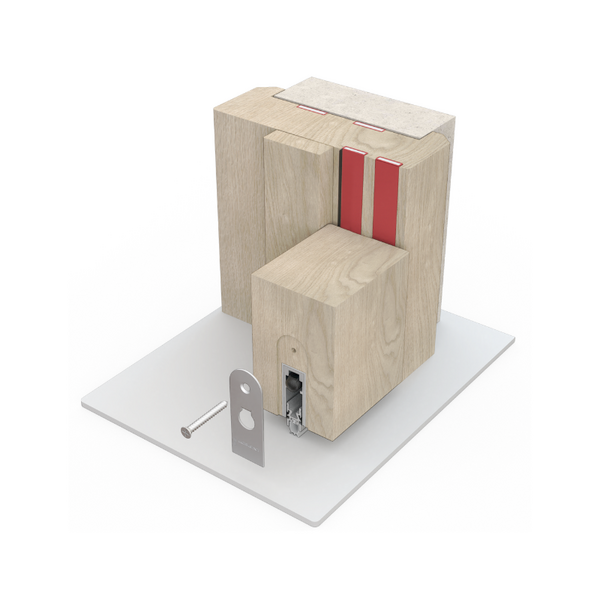

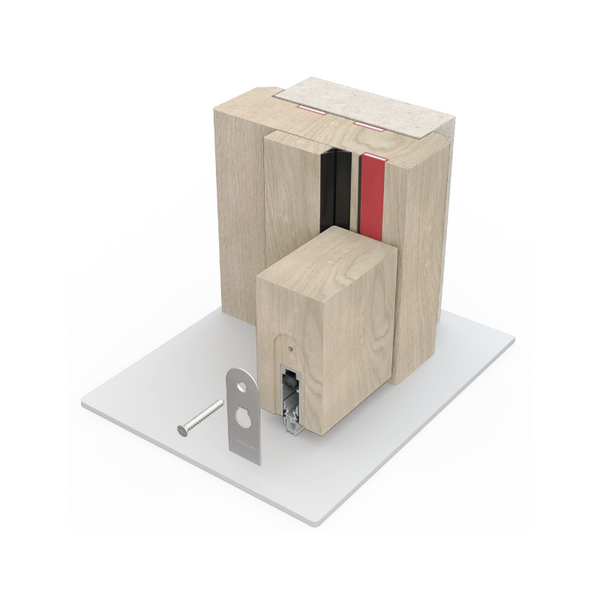

LOCATION Single + double leaf doors
MIN/MAX GAP SIZES 3mm/4mm
SEAL MATERIAL PVC encased sodium silicate + flexible elastomeric fins

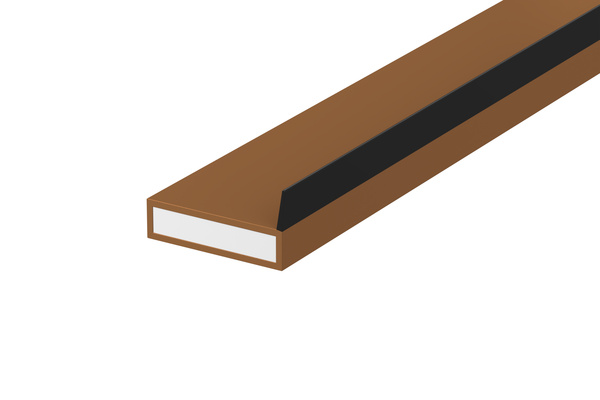

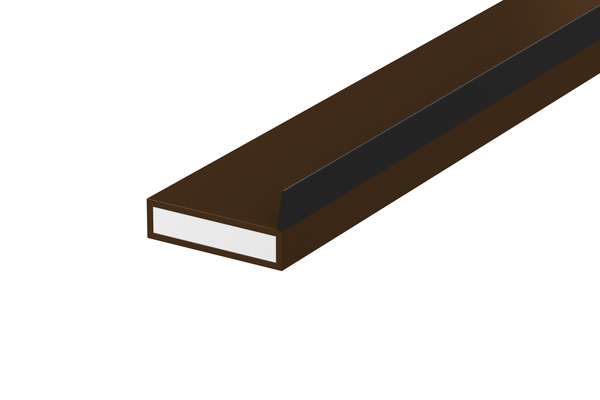

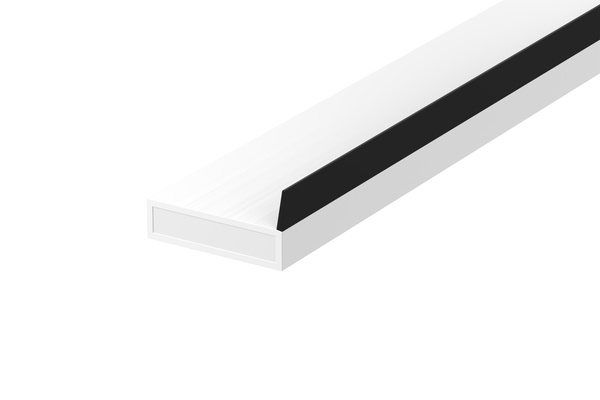

Standard colours White, black, dark brown, light brown + grey

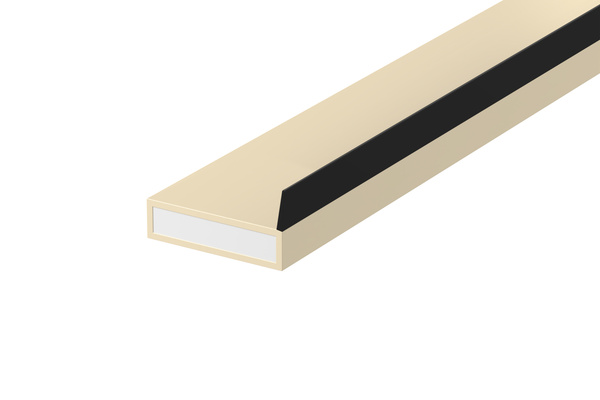

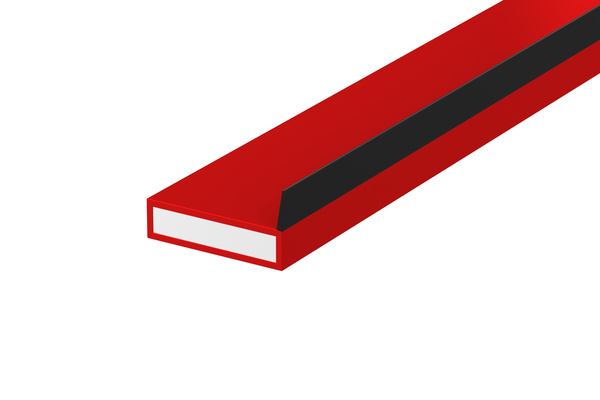

Non-standard finishes Cream, red + silver are subject to MOQs
STANDARD LENGTHS 1m + 2.1m. Other lengths to special order
TEST EVIDENCE Fire: BS 476-22:1987 & BS EN 1634-1:2008. Smoke: BS 476-31.1: 1983 at ambient temperature. Assessment: CNA/F14171. Acoustic: BS EN ISO 10140-2:2010. Durability: 100,000 cycles
Performance Meets smoke requirement: BS 9999: 2017
CERTIFICATION
Certifire CF330 + CF341
BBA 92/2841
IFC FRPP454
