LAS3007 si Door Bottom Seal
Heavy Duty
A heavy duty, multi-blade weather proof seal, which can be fitted without removing the door, + can be used with a choice of threshold plates. Concealed fixings, pre-drilled + slotted holes on LAS3007 si provide easy adjustment. Durable, anodised aesthetic finish.
Finish

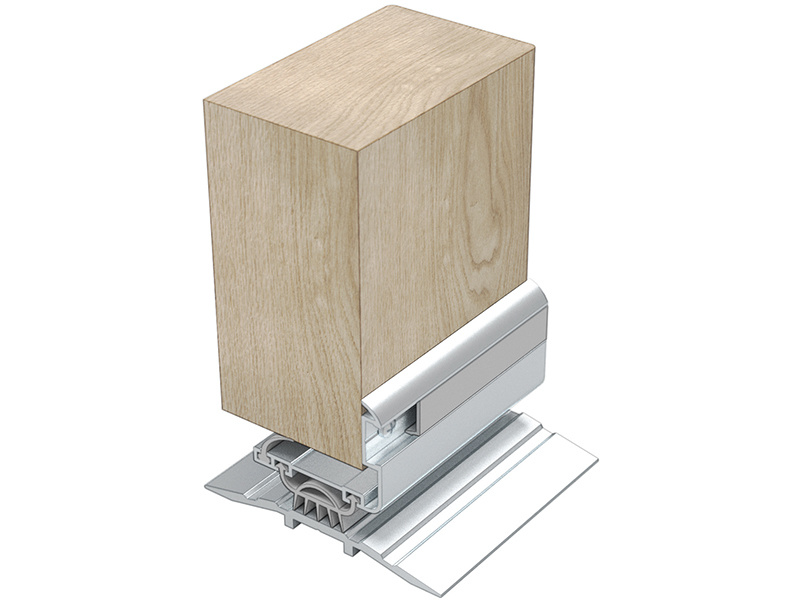

![](/imager/productimages/Supporting-images/Isometrics/1106/LAS3007-isometric_5472332afa344033d2bf9e7b6b9d883e.jpg)

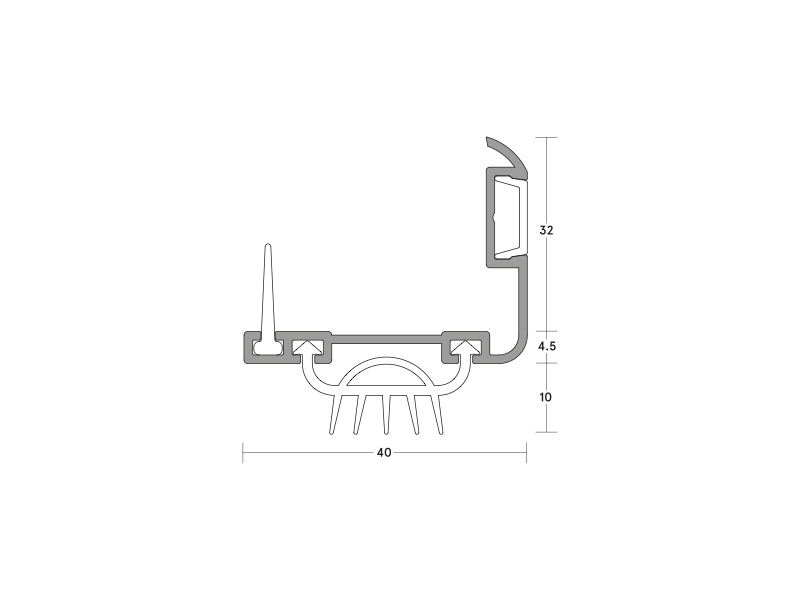

![](/imager/productimages/Supporting-images/Cross-sections/1118/LAS3007-cross-section_5472332afa344033d2bf9e7b6b9d883e.jpg)
![](/imager/productimages/Supporting-images/Isometrics/1106/LAS3007-isometric_905a32f077cde75e59ae4f0bd185c8e7.jpg)
![](/imager/productimages/Supporting-images/Cross-sections/1118/LAS3007-cross-section_905a32f077cde75e59ae4f0bd185c8e7.jpg)
System specification
Property | |
---|---|
LOCATION | Single + double leaf doors |
MIN/MAX GAP SIZES | 16mm/22mm |
SEAL MATERIAL | Flexible silicone rubber |
Standard finish | Silver anodised aluminium with grey cover strip and grey silicone rubber blade |
Non-standard finish | Bronze anodised aluminium with black cover strip and black silicone rubber blade are subject to non-standard charges and additional lead times |
STANDARD LENGTHS | 1m + 2.1m. Other lengths to special order |
CERTIFICATION | |
UL | R27972 |
