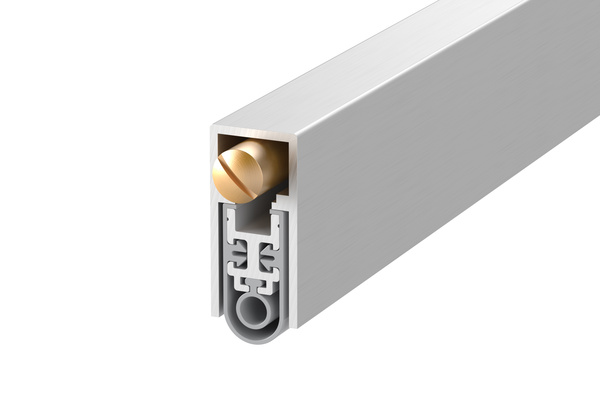

LAS8014 si Drop Seal
Mortised
A durable, heavy duty automatic drop seal featuring a wrap-around outer gasket with an additional internal gasket designed for superior acoustic performance. The seal features a parallel drop mechanism. It is spring-loaded to lift clear of the floor as soon as the door is opened by a few millimetres. Die cast end plates are available in a metallic finish for premium aesthetics.
Finish
System specification
| Property | |
|---|---|
| Test Evidence | Smoke: BS EN 1634-3:2004 at ambient temperature. Acoustic: BS EN ISO 10140-1: 2010+A2: 2014 (Annex J) up to Rw 47dB. Durability: 1 million cycles |
| Performance | Meets smoke requirement: BS 9999:2017 |
| Location | Single swing, single + double leaf doors |
| MIN/MAX GAP SIZES | 6mm/15mm |
| SEAL MATERIAL | Grey silicone rubber |
| Standard finish | Silver anodised aluminium, grey silicone rubber gasket as standard. The non-button end cap is designed blank, creating an engineered smooth aesthetic |
| Standard length | 335mm, 435mm, 535mm, 635mm, 735mm, 835mm, 935mm, 1035mm, 1135mm + 1235mm. Note: Other lengths can be cut back to the next size down. The 535mm can be cut back to 495mm. The 335mm can be cut back to 255mm. |
| Adjustments | Self-levelling on uneven surfaces - can be adjusted independently of the fixing screws |
| CERTIFICATION | |
| UL | R27972 |
