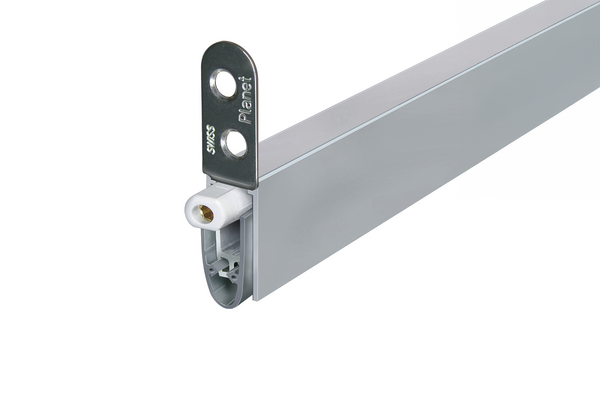

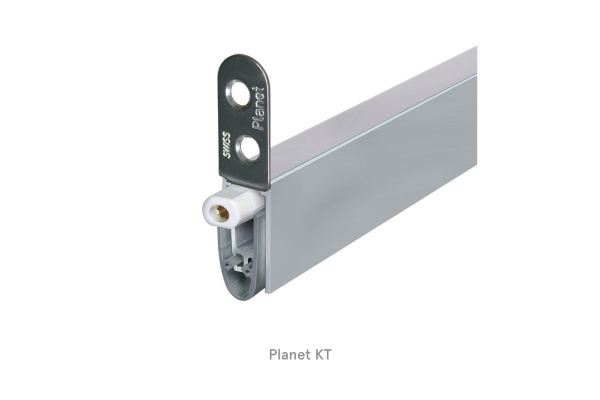

Planet KT Drop Seal
Mortised

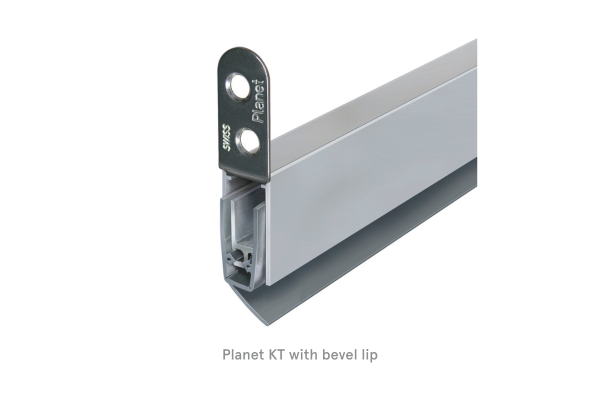

A mortised automatic drop seal designed for timber, metal, and PVC doors. Featuring a high-efficiency mechanism with hinge-side triggering, it enables parallel lowering with automatic compensation for sloping floors. Supplied with a standard gasket for even, flat floors, providing a maximum drop of 18mm. Alternatively, an optional bevel lip is available for uneven floors, accommodating gaps of up to 23mm. Suitable for fire and smoke-shielding doors.
System specification
| Property | |
|---|---|
| Possible door types (depending on options) | Single swing doors, double swing doors, sliding doors, folding doors, pivot doors |
| Profile size | 13 x 25mm |
| Max. drop height | 18mm |
| Profile material | Aluminium |
| Seal profile | High-quality silicone or high-quality self-extinguishing silicone |
| Sound insulation | up to 48 dB |
| Standard lengths | 335mm, 460mm, 585mm, 710mm, 835mm, 960mm, 1085mm, 1210mm, 1335mm, 1460mm, 1585mm |
| Non-standard lengths | Sizes up to 6m are available to special order |
| Incl. accessories | Planet HS assembly set with 2 mounting brackets (stainless steel), 4 screws and stopping plate type 1 (stainless steel) |
